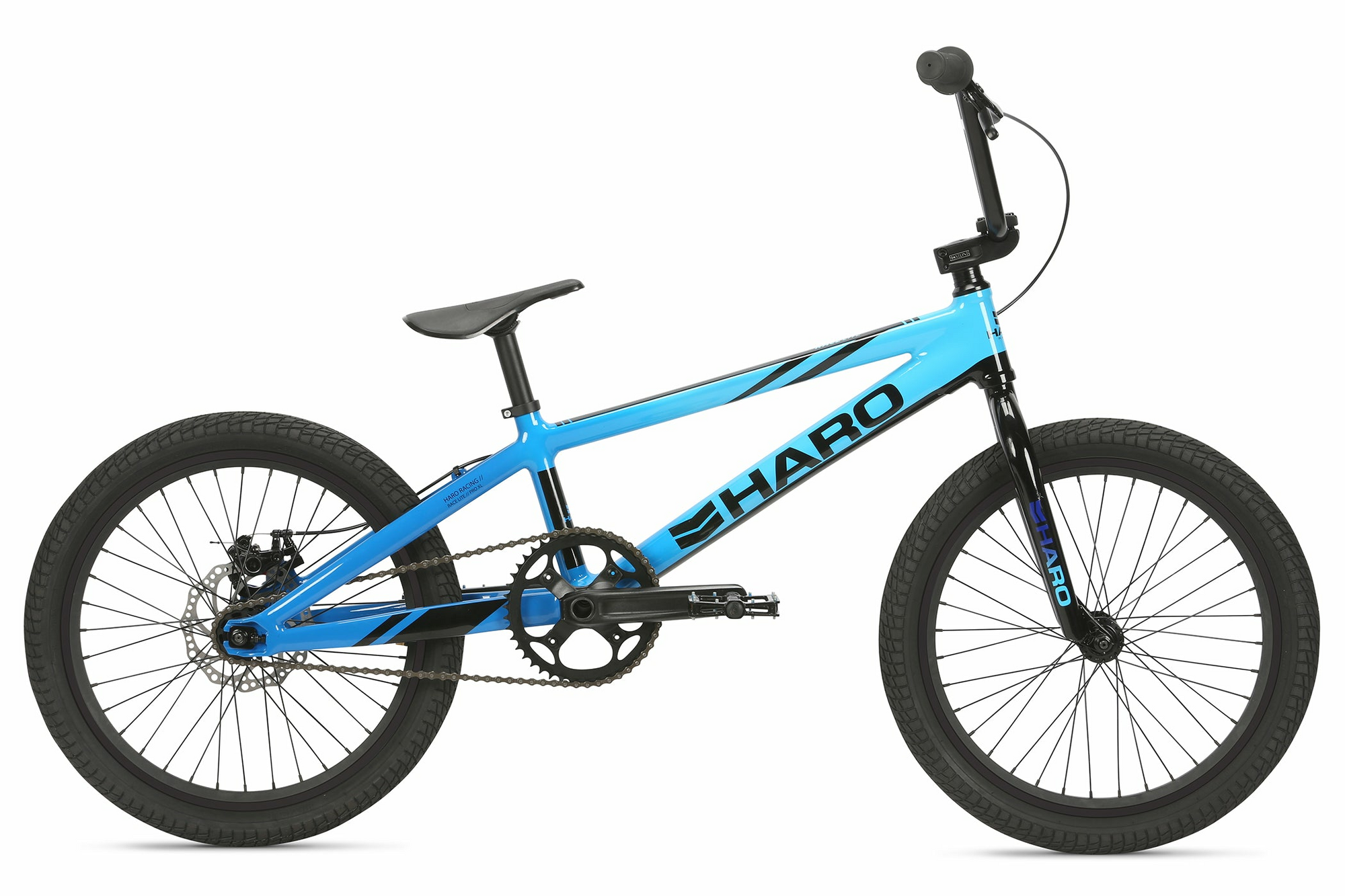

Haro Pro XL

Haro Pro XL
  • Color: Blue Fade
$649.99
Color: Blue Fade
Size: One Size
Wheel Size: 20-inch
Please select options Unavailable
Sorry, this item is currently not available online. Please contact your local Capitol Cyclery store

Details

- 6061-T6 Heat Treated Alloy Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
- Full Cr-Mo 1 1/8" Threadless Steerer w/ Tapered Legs
- 2-pc Forged Alloy w/ 24mm Hollow Spindle
- 20" Alloy 36h, Double Wall
- 36h Alloy Sealed-Bearing w/ Disc Cassette Rear
- Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear

Geometry Chart:
SizeA. Head AngleB. Seat AngleC. Top TubeD. Seat TubeE. ChainstayF. BB HeightG. Stand Over
2074° 72°21" (533mm)9.4" (240mm)15.2" (387mm)11.5" (293mm)22.1" (562mm)
Sizes:
SizeInchesCM
205'9" - 6'

Specs

Pedals Alloy DX, 9/16"
Fork Full Cr-Mo 1 1/8" Threadless Steerer w/ Tapered Legs
Hubs F: 36h Alloy Sealed-Bearing / R: Disc Cassette Rear
Stem Haro Full Cr-Mo, 8" Rise
Frame 6061-T6 Heat Treated Alloy PTC Disc Frame w/ Integrated Headtube, Internal Cable Routing, Smooth Welding & Haro 3D Dropouts w/ Integrated Chain Tensioner
Tires Kenda "Konversion" 20 x 1.95" Front / 20 x 1.75" Rear
Brakes Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor
Saddle Haro Slim Plastic Pivotal
Wheels 20" Alloy 36h, Double Wall
Headset 1-1/8"" Sealed Threadless
Crankset 2-pc Forged Alloy w/ 24mm Hollow Spindle - 175mm
Seatpost Alloy Pivotal, 27.2mm
Chainrings 44t Alloy Chainring
Handlebars Haro Full Cr-Mo, 8" Rise
Tape/Grips Micro-Knurl Grip
Brake Levers Promax XL-373 Two Finger
Bottom Bracket Press-Fit BB86, Sealed Bearing
Cassette/Freewheel 16t Cassette

* Subject to change without notice.

Part Numbers

Option UPC MPN
Blue Fade / One Size / 20-inch 691840245517 24551
