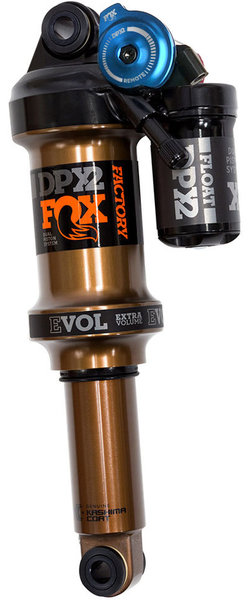

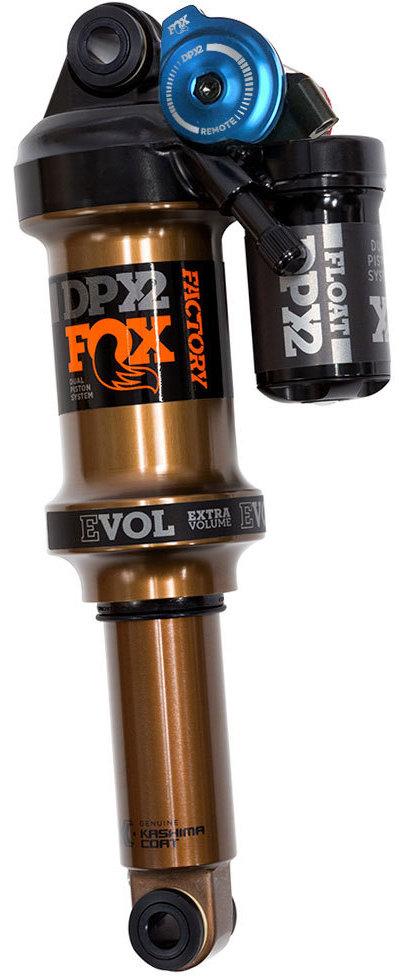

Our Most Advanced Trail Shock Ever
- X2 small bump sensitivity meets an improved DPS adjustment range
- Recirculating oil damper design gives riders better control
- One-piece EVOL air sleeve improves responsiveness and sensitivity
- Remote available separately
DUAL PISTON SYSTEM
Dual Piston System (DPS) features three on-the-fly settings—Open, Medium, and Firm—to allow riders to adapt to a wide variety of terrain (Remote model is two position—Open/Firm). The valve design provides full lockout without compromising bump compliance, ride control, and efficiency. Factory Series DPX2 shocks (non-remote models) feature an additional 10 clicks of compression adjustability in the Open mode.
Taking the oil flow architecture from the FLOAT X2 and DHX2 designs, the DPX2 is the X2’s little brother. This system creates low hysteresis, quick hydraulic response, better sensitivity and improved heat dissipation. It also provides a wide, usable tuning range and checked low-speed compression and rebound flow paths for better tuning and consistent performance.
Air Transfer Port System
Our EVOL linear spring curve gives forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel.
EVOL Air Sleeve
The lightweight one-piece EVOL air sleeve was designed for each shock size (imperial, trunnion, and metric) to balance internal forces, and has maximized bushing overlap to reduce friction during "real world" forces like side-loading and twisting.
GENUINE KASHIMA COAT
Kashima's distinctive gold color is backed by its high performance attributes—properties that provide an exceptionally smooth feel and extreme durability.
|Orange Logo / 7.25 x 1.75-inch||611056141632||973-01-260|
|Orange Logo / 7.5 x 2.0-inch||611056141649||973-01-233|
|Orange Logo / 7.875 x 2.0-inch||611056141656||973-01-232|
|Orange Logo / 7.875 x 2.25-inch||611056141663||973-01-231|
|Orange Logo / 8.5 x 2.5-inch||611056141670||973-01-261|
