Details

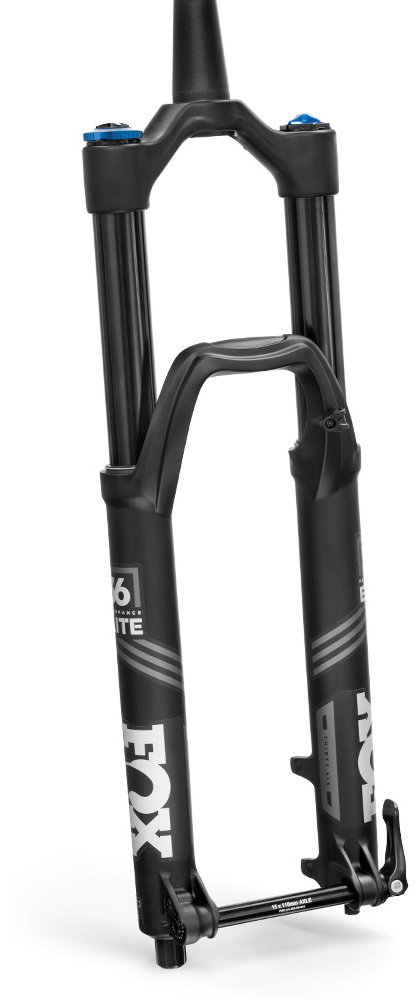

The award-winning 36 with FIT GRIP2 4-way adjustable damper features patent-pending Variable Valve Control (VVC) high- and low-speed rebound adjuster, improved compression damping, and less friction overall. With all this and the legendary Fox feel, the 36 offers a level of performance and adjustability sought by today's riders.
Performance Elite forks retain the same adjustments, dampers, weight, and 7000 series aluminum upper tubes as Factory Series, but have black anodized upper tubes instead of Genuine Kashima Coat. A Performance Elite graphics package is found on these forks to tie in the black-on-black look.
GRIP2 — Next-Generation Sealed Cartridge FIT Damper
GRIP2 is our next-evolution sealed cartridge FIT system, our highest performing gravity-focused damper. The new damper shares its roots with the original GRIP architecture but has been seriously enhanced with all-new technology: 4-way adjustability, VVC high-speed rebound circuit, high-performance mid-valve, and overall friction-reducing treatments.
EVOL — Air Transfer Port System
Our EVOL linear spring curve gives forks and shocks plushness off the top, extra mid-stroke support, and more tunable bottom-out progression, allowing riders to tap into the ideal pairing of front and rear-end feel.
FLOAT EVOL Air Spring
EVOL technology from rear shocks is integrated into all FOX forks. EVOL increases negative air spring volume, specifically positioned and sized for optimum small bump sensitivity.
Specs
Wheel Size | 27.5-inch |
---|---|
Brake Compatibility | Disc |
Steerer Diameter/Material | 1.5 – 1 1/8" tapered |
Stanchion Diameter/Materials | 36mm |
Dropouts | 110 x 15mm Boost |
Spring | FLOAT EVOL Air Spring |
Damper | FIT GRIP2 |
Adjustments | HSC/LSC HSR/LSR |
* Subject to change without notice.
Videos
Part Numbers
Option | UPC | MPN |
---|---|---|
110 x 15mm / Matte Black / 160mm / 27.5-inch | 611056140642 | 910-20-766 |
110 x 15mm / Matte Black / 170mm / 27.5-inch | 611056140680 | 910-20-761 |
